SINGLE-PREMIUM INSULATED FLAT PANEL PROFILE -SECTIONAL GARAGE DOOR.
2100- 2140h x (Enter width from Drop down 2700w max)
CURRENTLY LEAD TIME 8 DAYS NZ WIDE
Door Description:

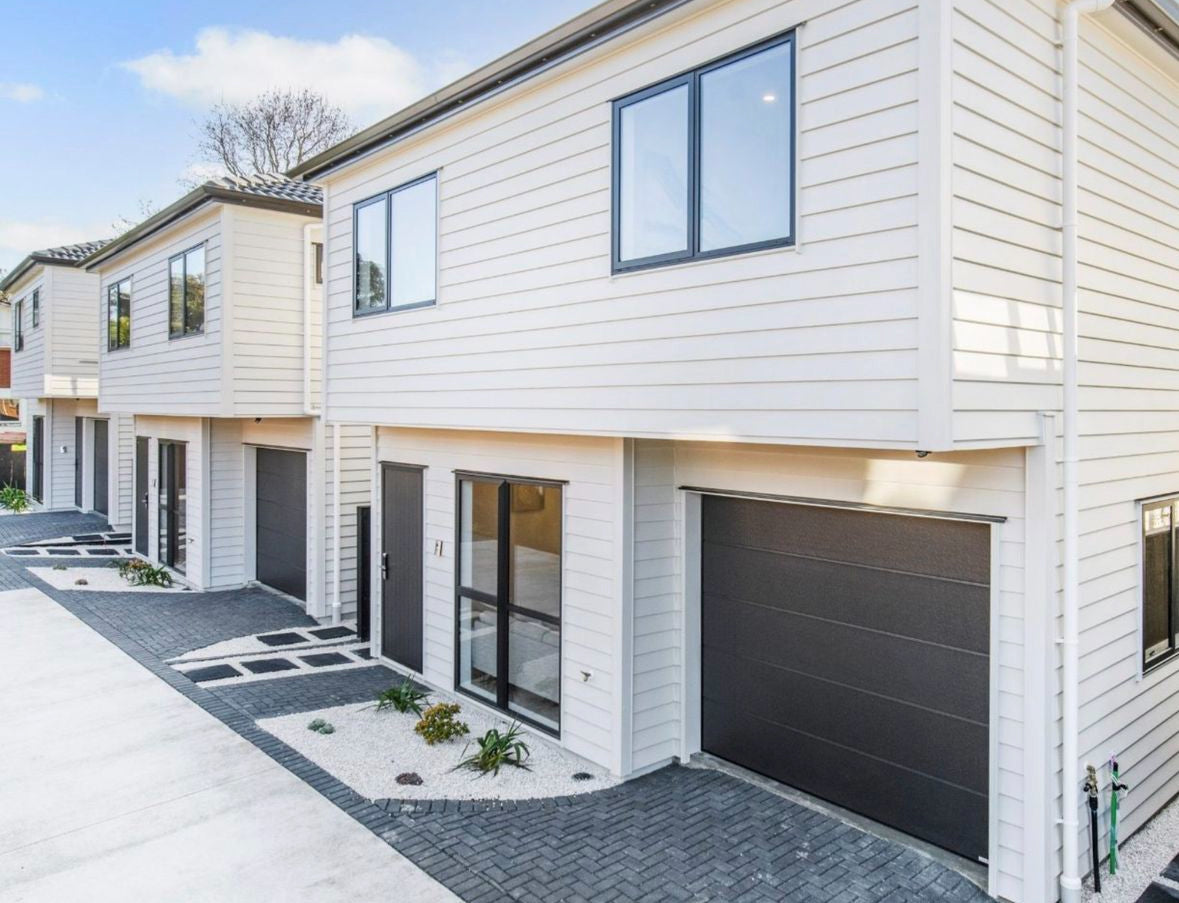

The Flatline Embossed is our most popular door because of the many suitable applications. The flatline embossed has the flat panel profile with the wood look without the maintenance of wood adding a modern look to any build or upgrade. Built in superior insulated designed Panel, keeps the interior cool when warm and warm when cool.

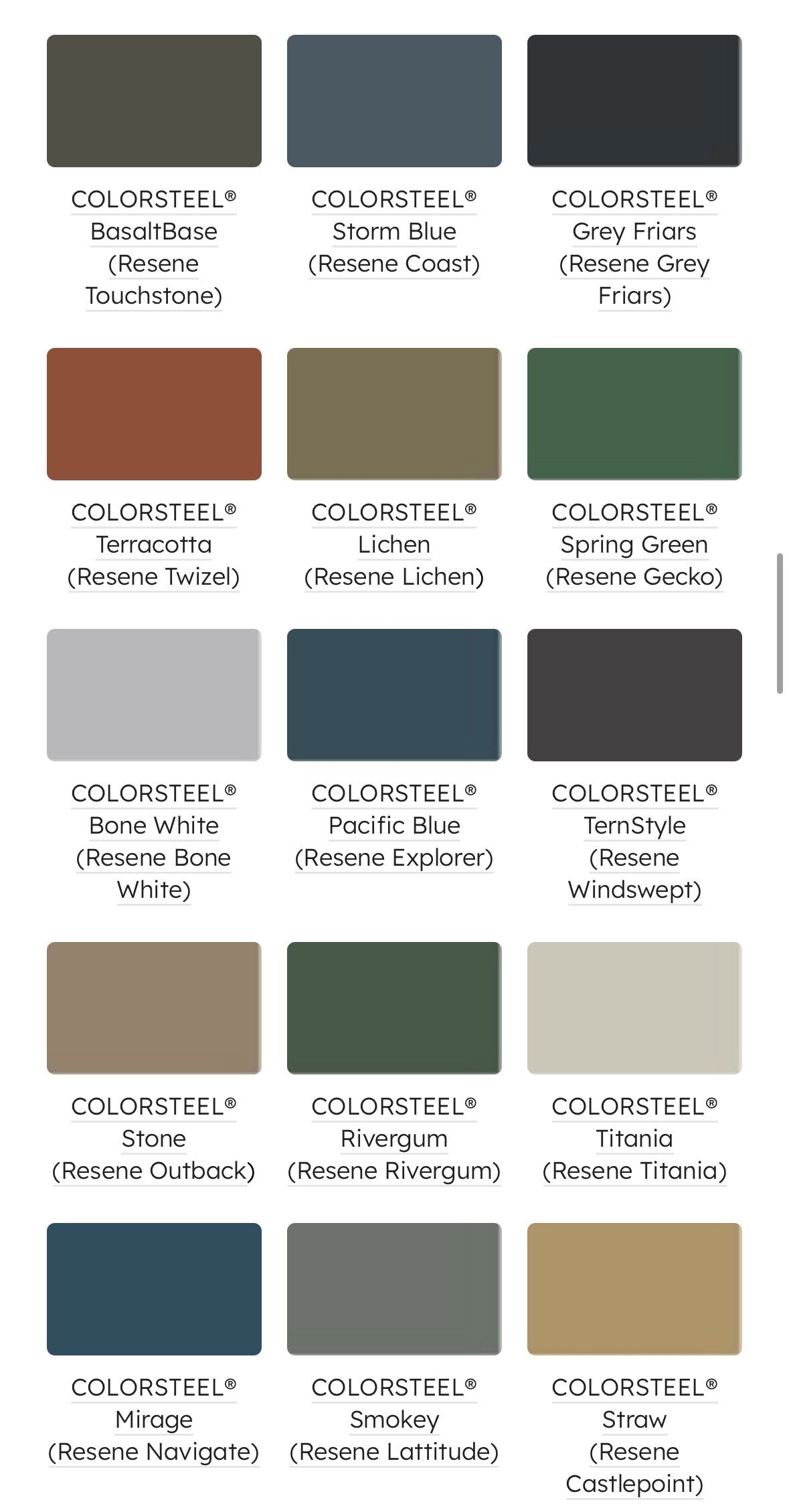

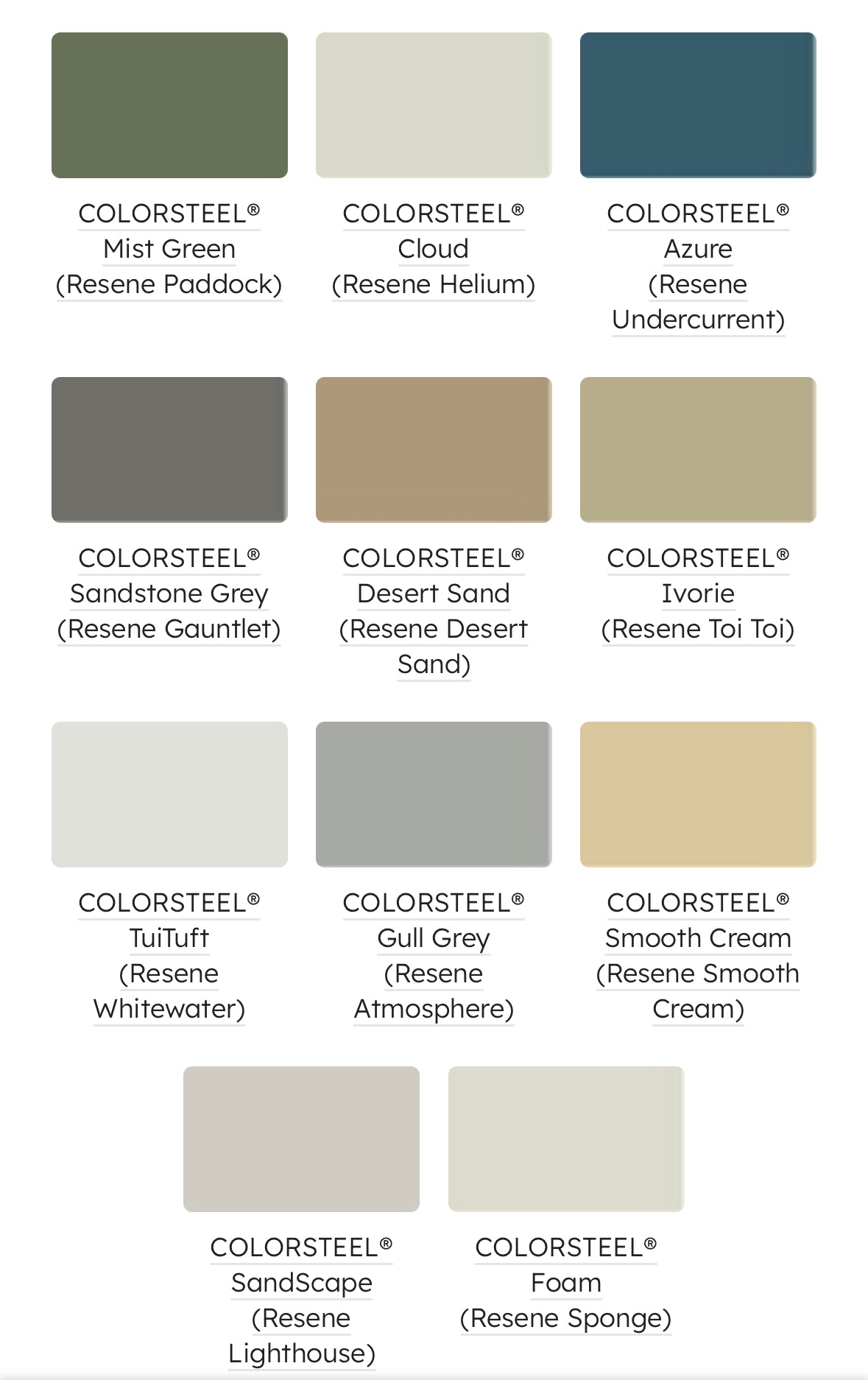

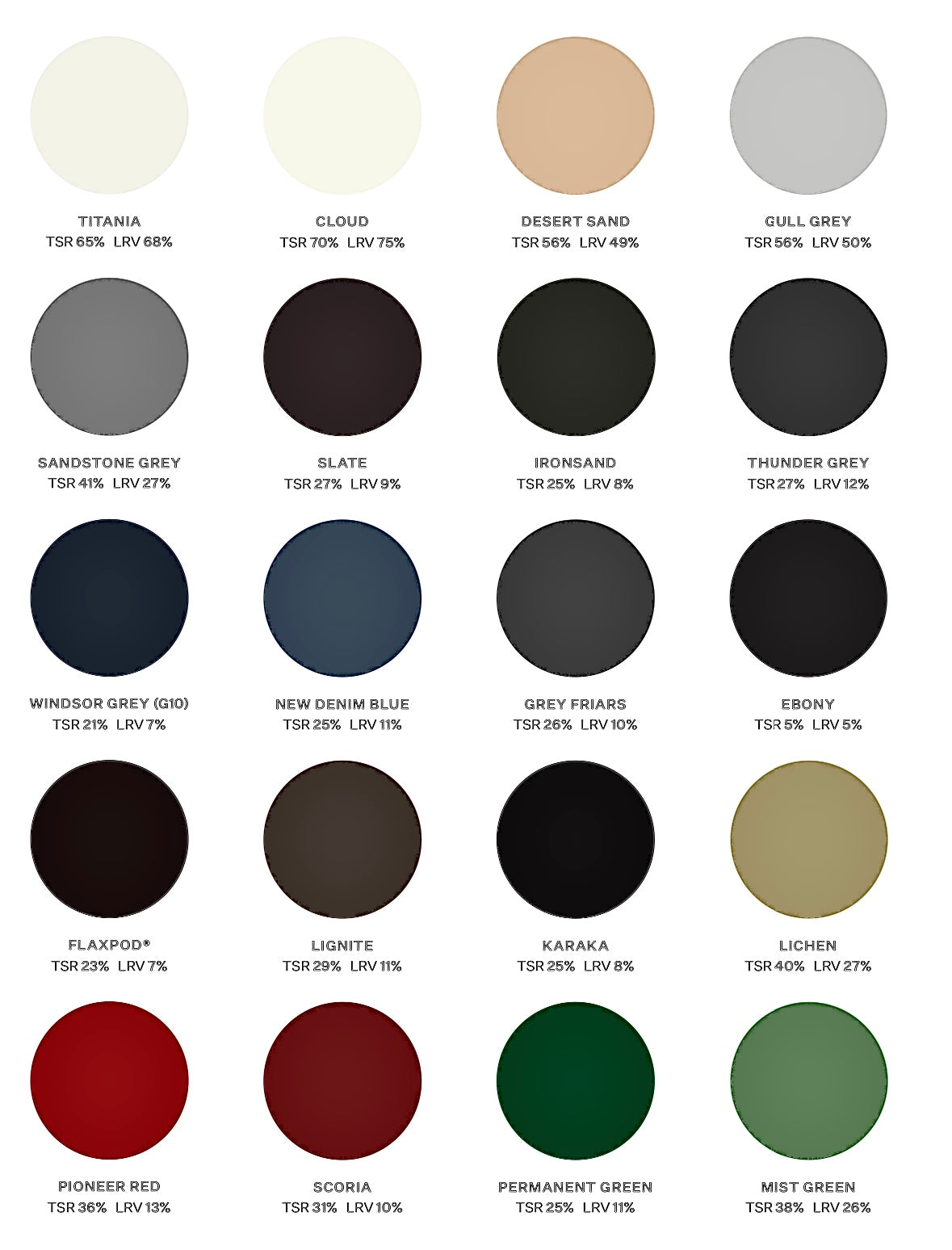

Endless colour choice: Hard as Nails 2 pack Auto/Marine paint. Painted in ANY colorsteel or Resene colour of your choice (please write colour choice in checkout box or email after purchase)
Whats included?

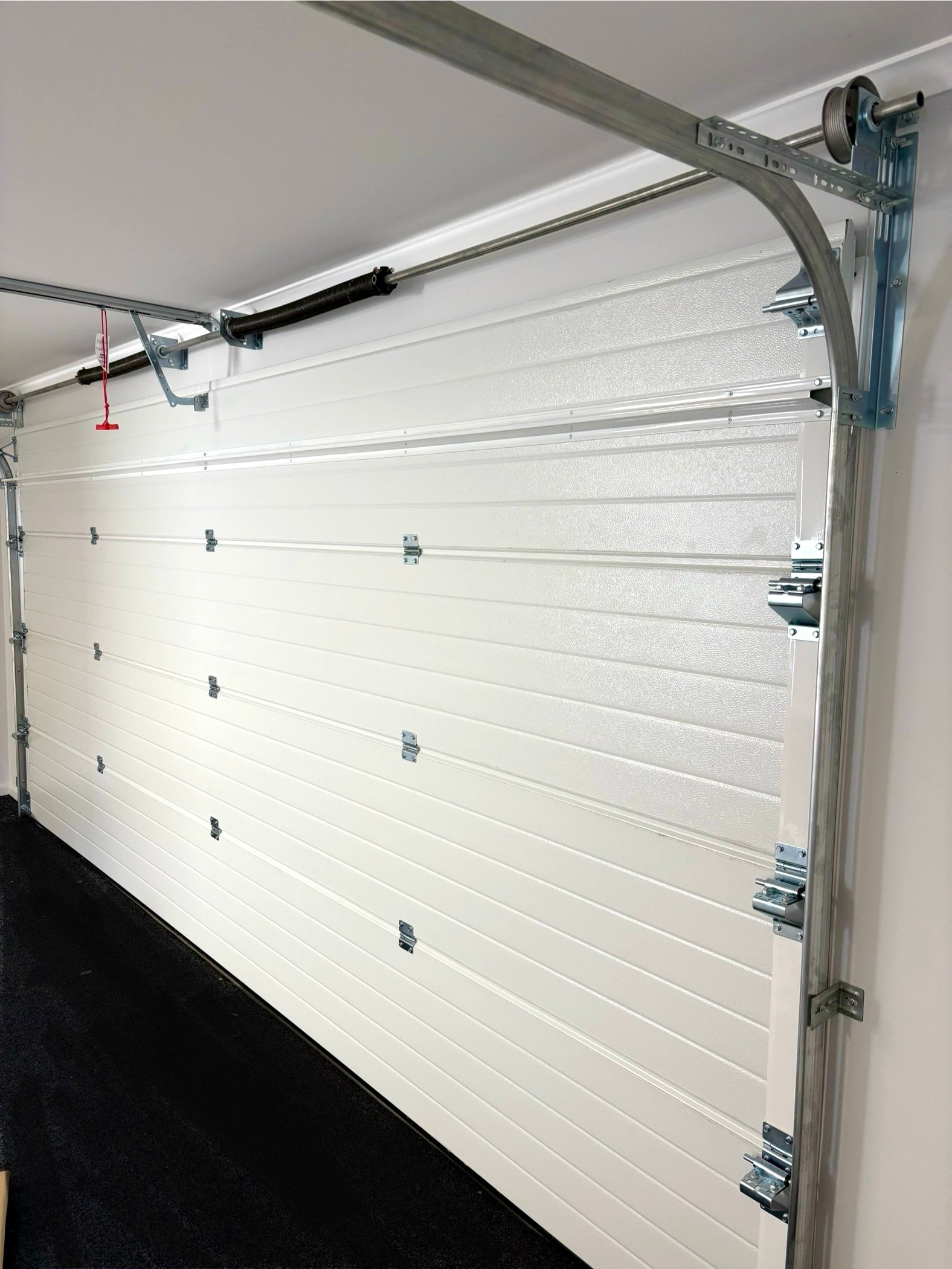

One Insulated premium panel door in wide flat panel Woodgrain Profile with springs, running tracks, hardware kit

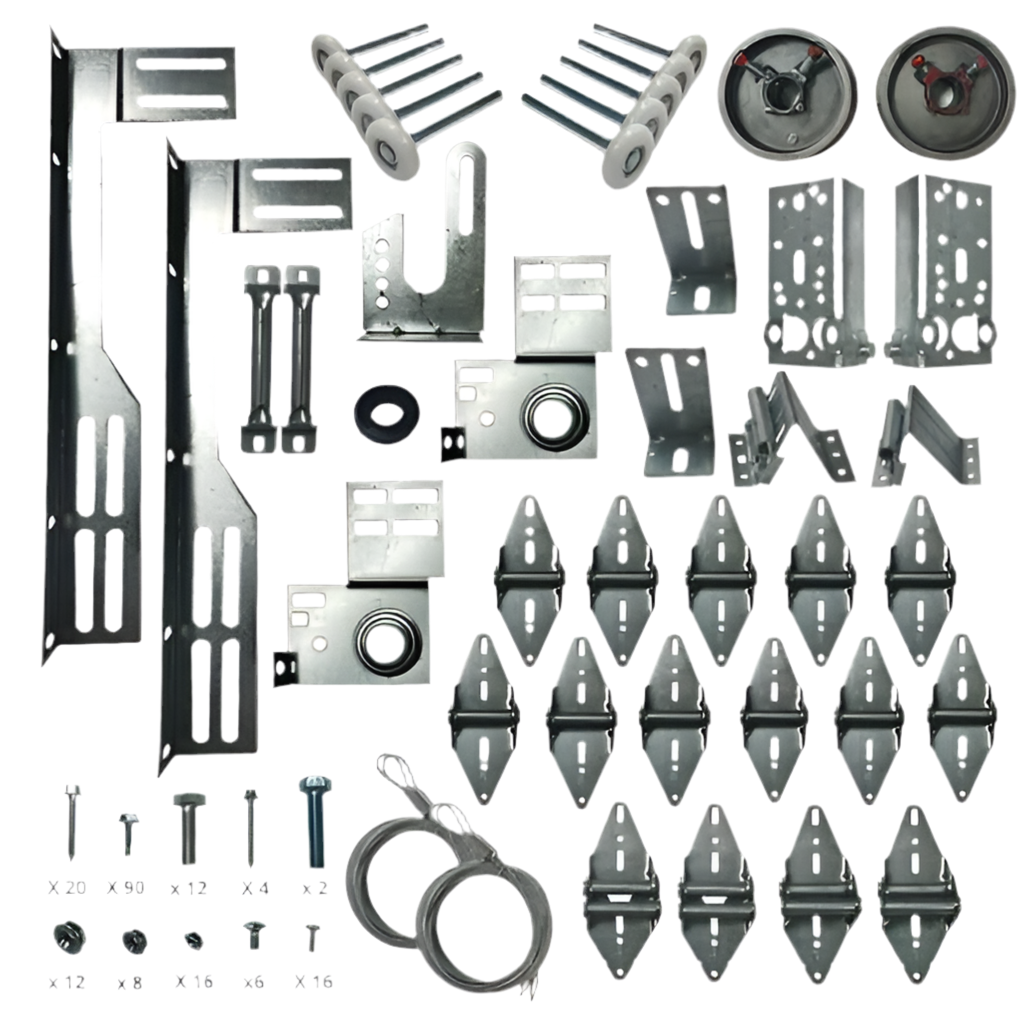

one hardware box fitting kit -one set of 360 degree weatherproof seals- one pair galvanised vertical tracks-one set galvanised horizontal tracks-one internal cross brace support- one PGD Pro-SR series S1000N motor including x2 remotes and x1 wireless wall switch (if opener selected)
DOOR:INCLUDES
Premium Insulated panels range door

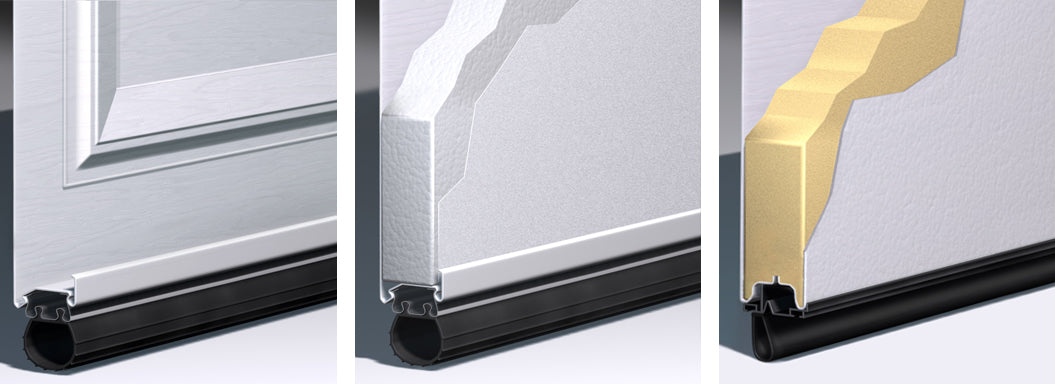

Built in Thermo core insulated panels.
*40mm thick panel.
*Exterior profile Flat Embossed
*double capped steel = 0.70 steel
*R value 2.2
*Interior view, white powder coated.
RUNNING GEAR & ACCESSORIES: INCLUDES

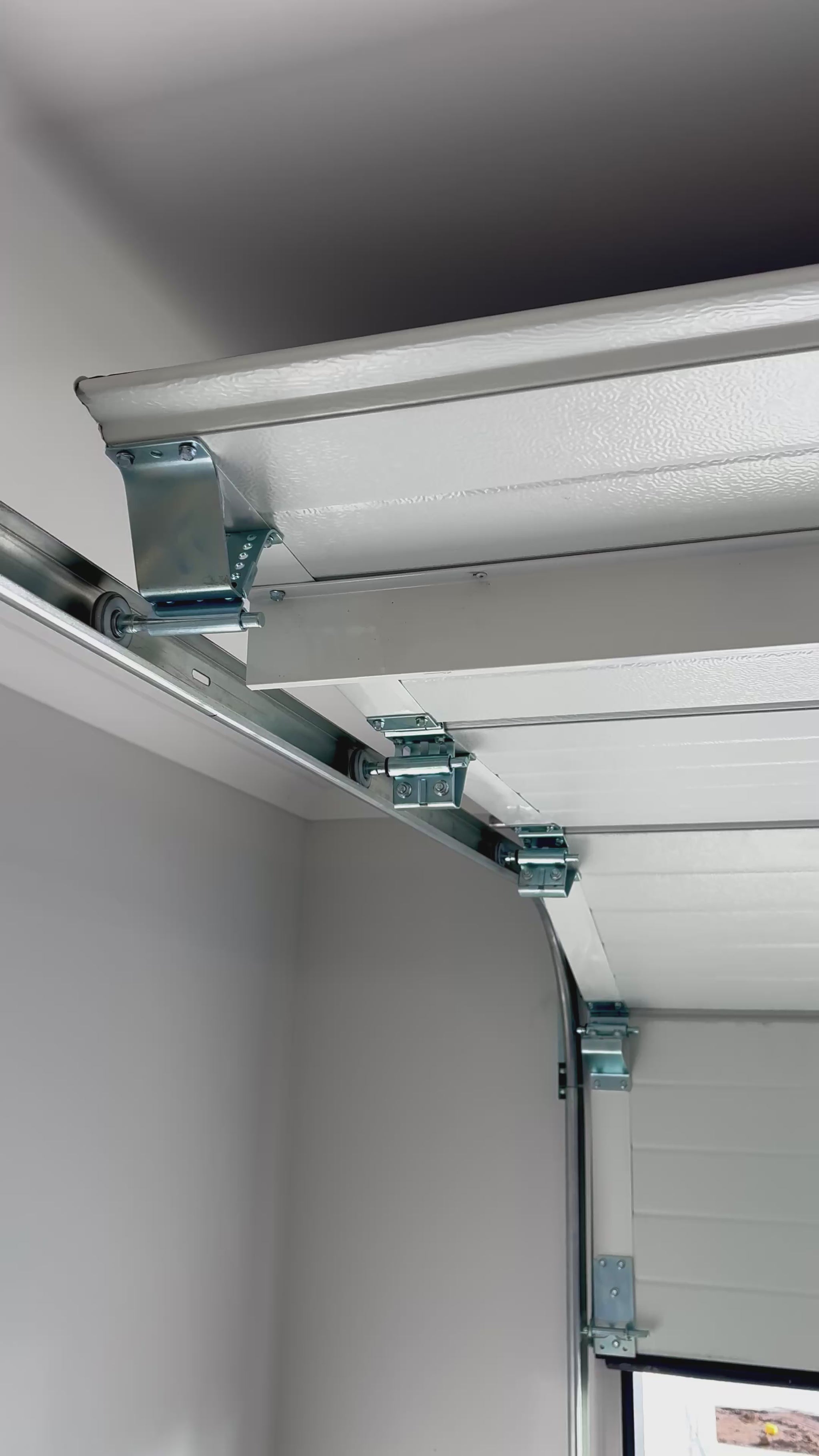

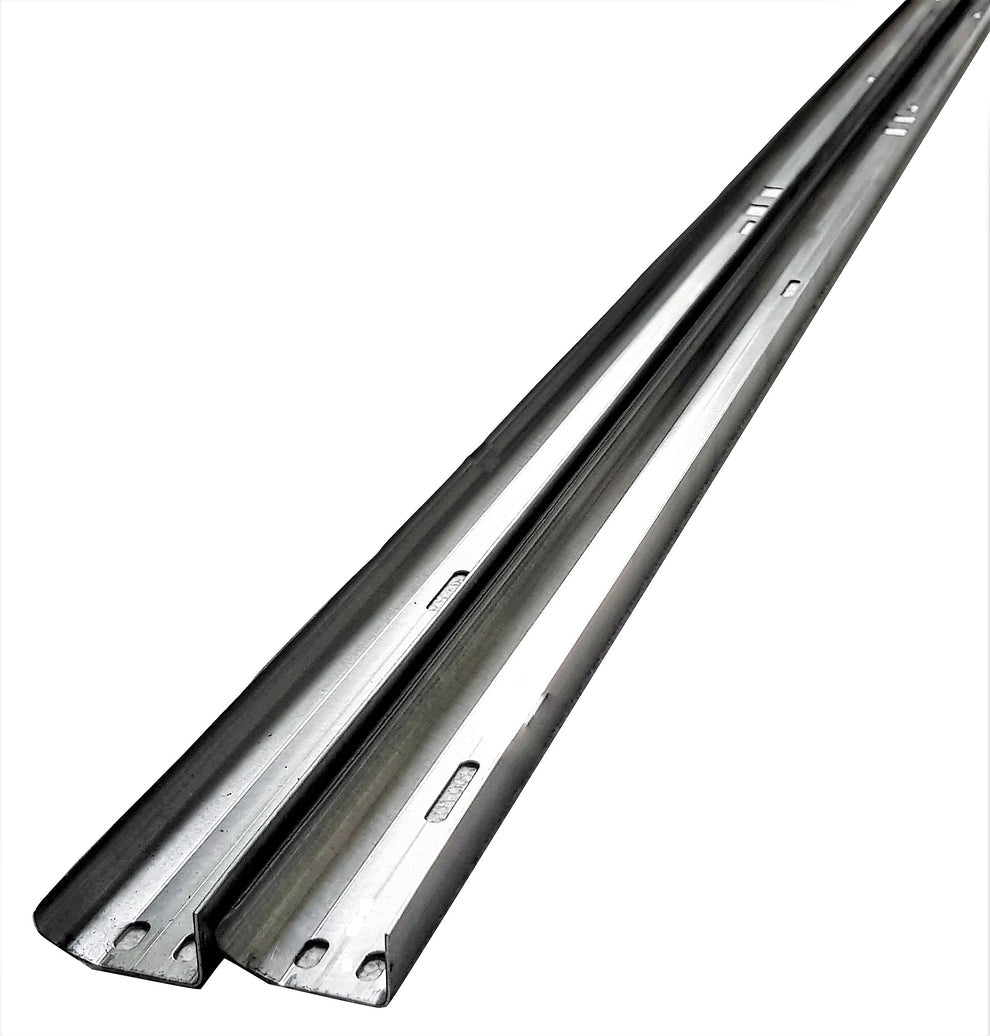

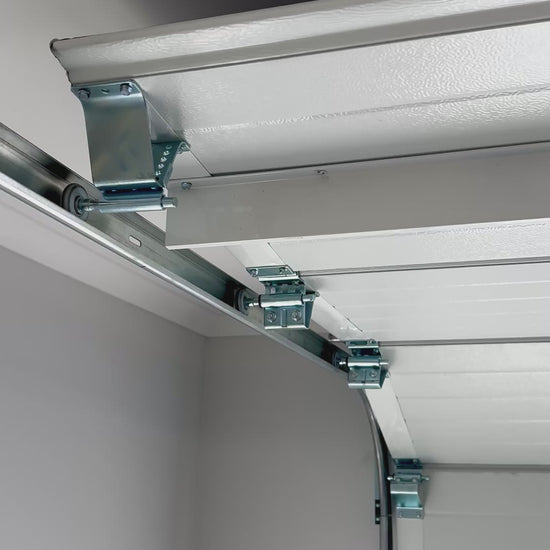

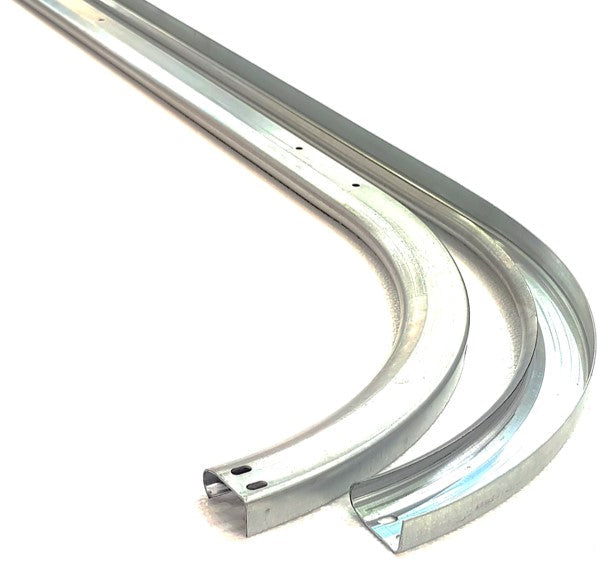

*Galvanised vertical and curved running tracks.

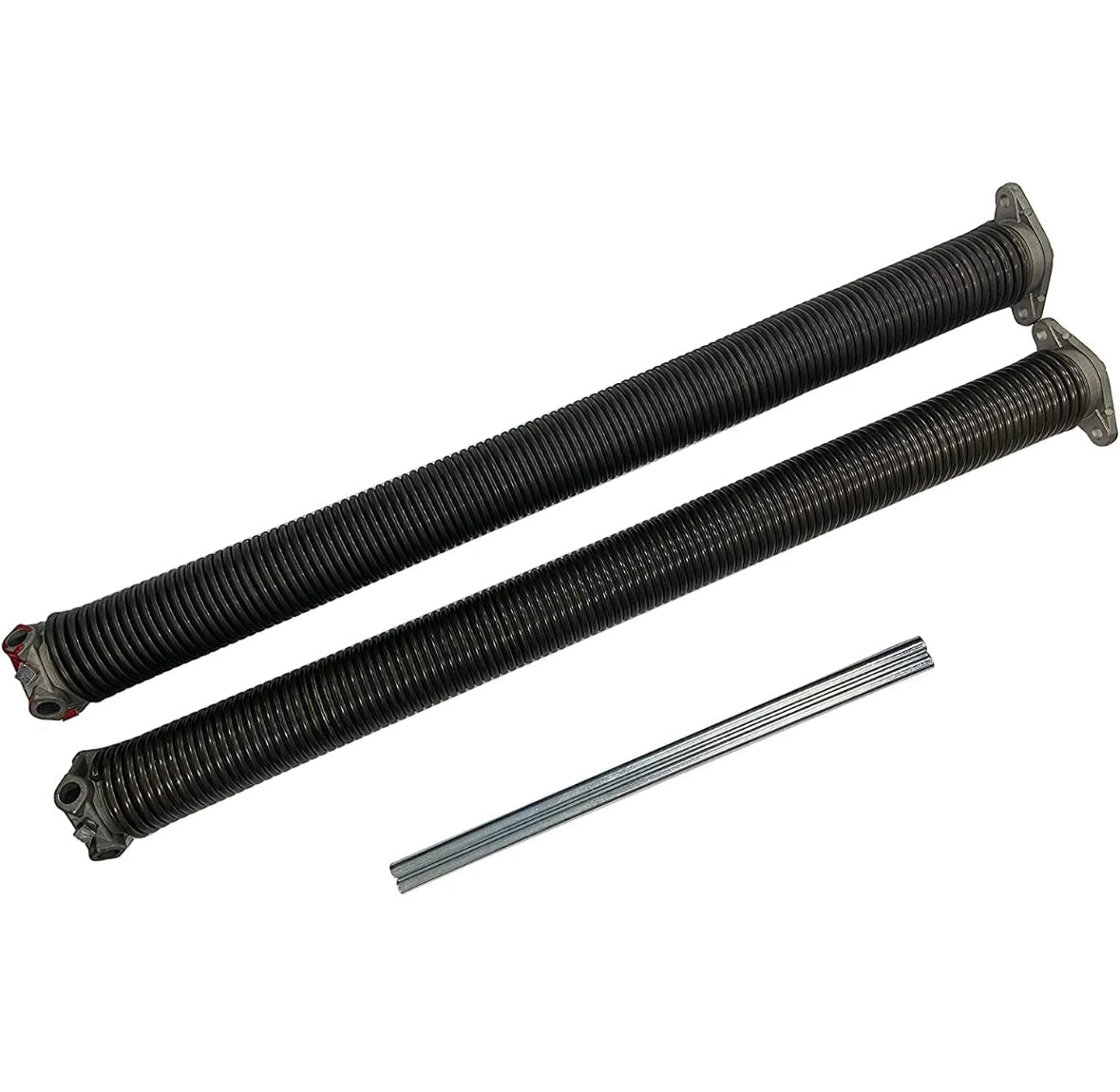

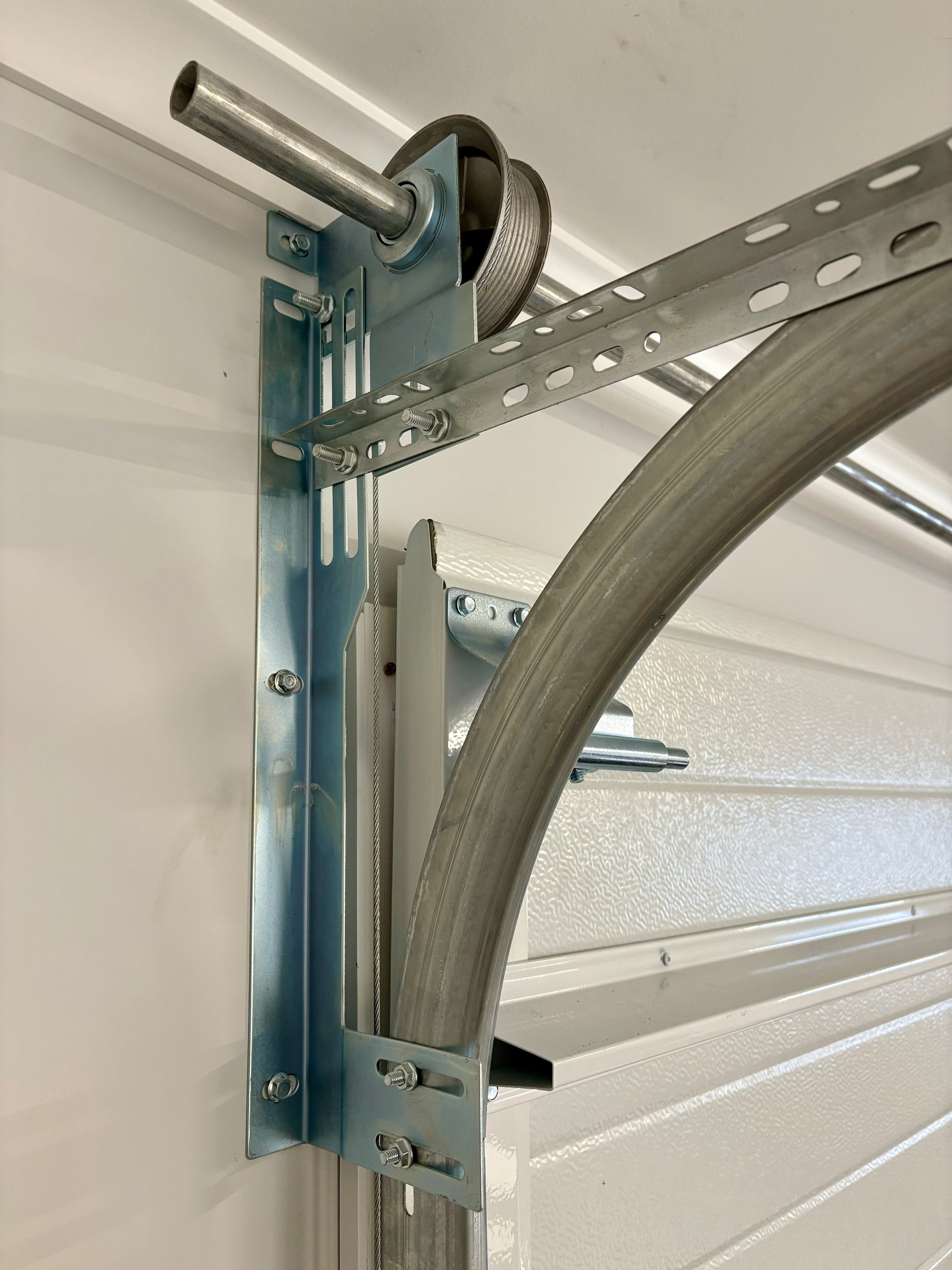

*High torsion precision springs
*Nylon brush sleeved hinges
*Precision Quiet• bearing soft wheels
*Powdercoat white internal support Strut

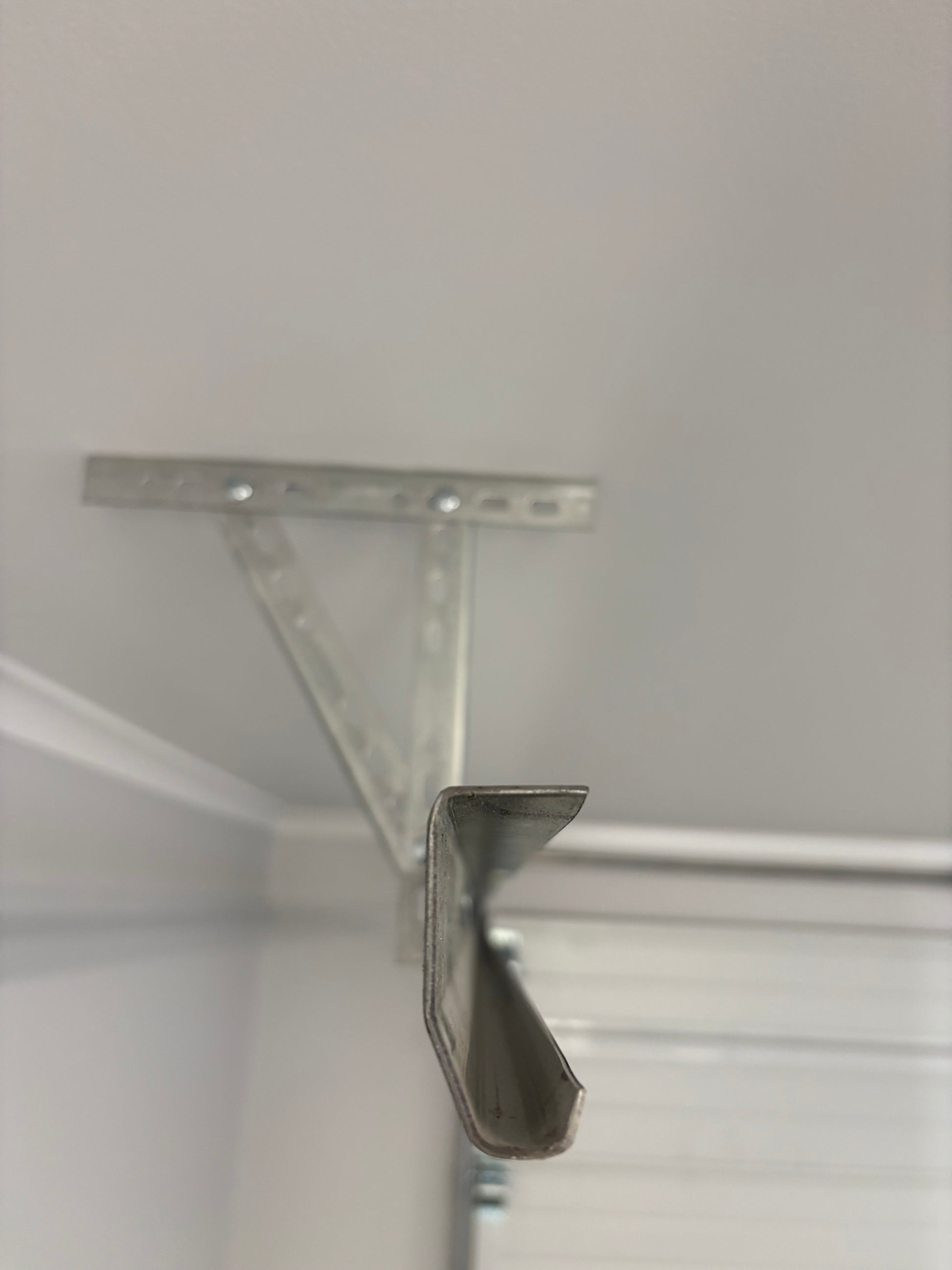

*Customisable Angle iron (support tracks-Ceiling)
*360 degree rubber weather seals
*Hard as Nails two pack marine grade factory finish paint

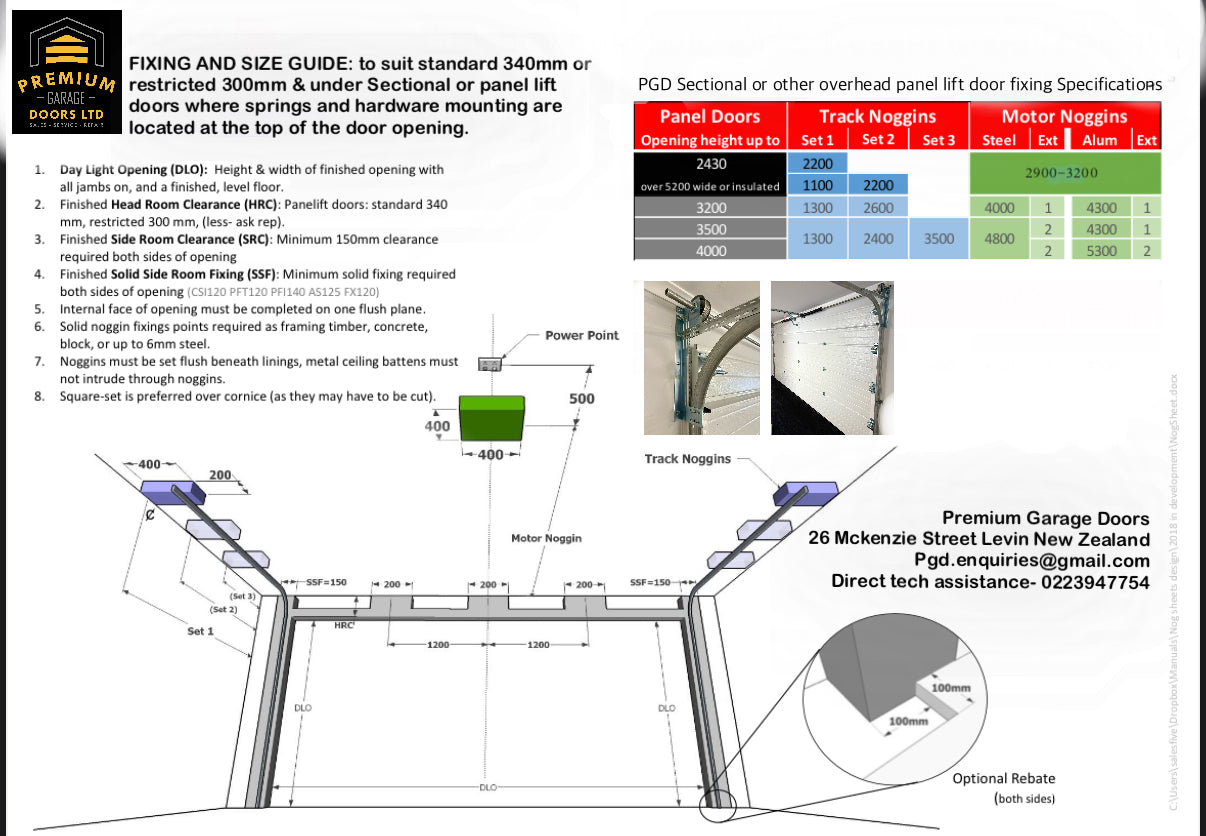

Fitting requirements:
*300mm head clearance needed (from top of your opening to your lowest point ie: ceiling, truss etc) if you have less than 300mm but more than 200mm we can provide “low head room tracks”
*130mm side clearance on both sides of the door frame
*Door frame to be 2.1h -2140mm height, width can be selected from custom size drop box

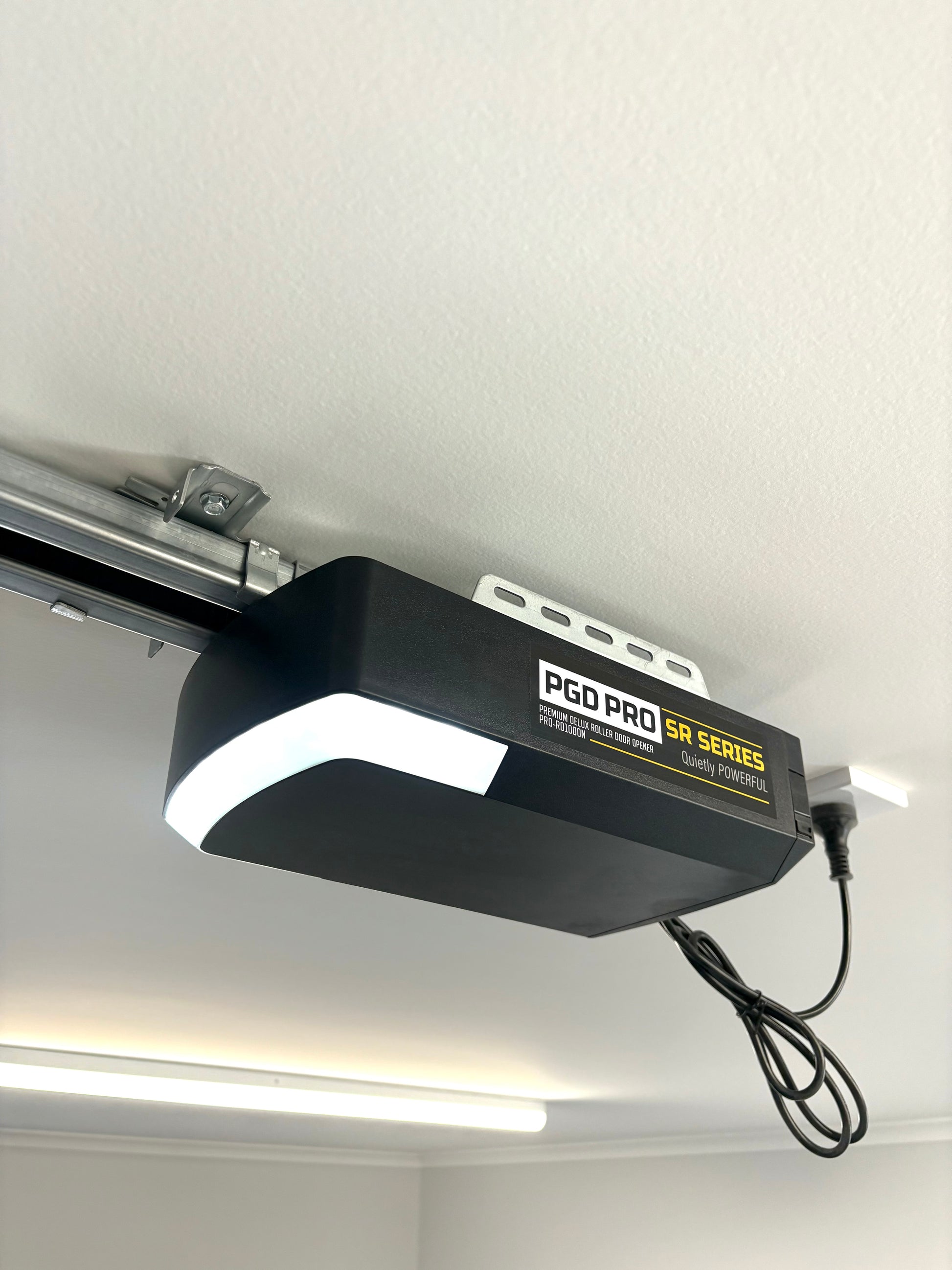

MOTOR DESCRIPTION:If selected
MODEL RANGE: Premium Garage Doors - PRO-SR Series "quietly POWERFUL"

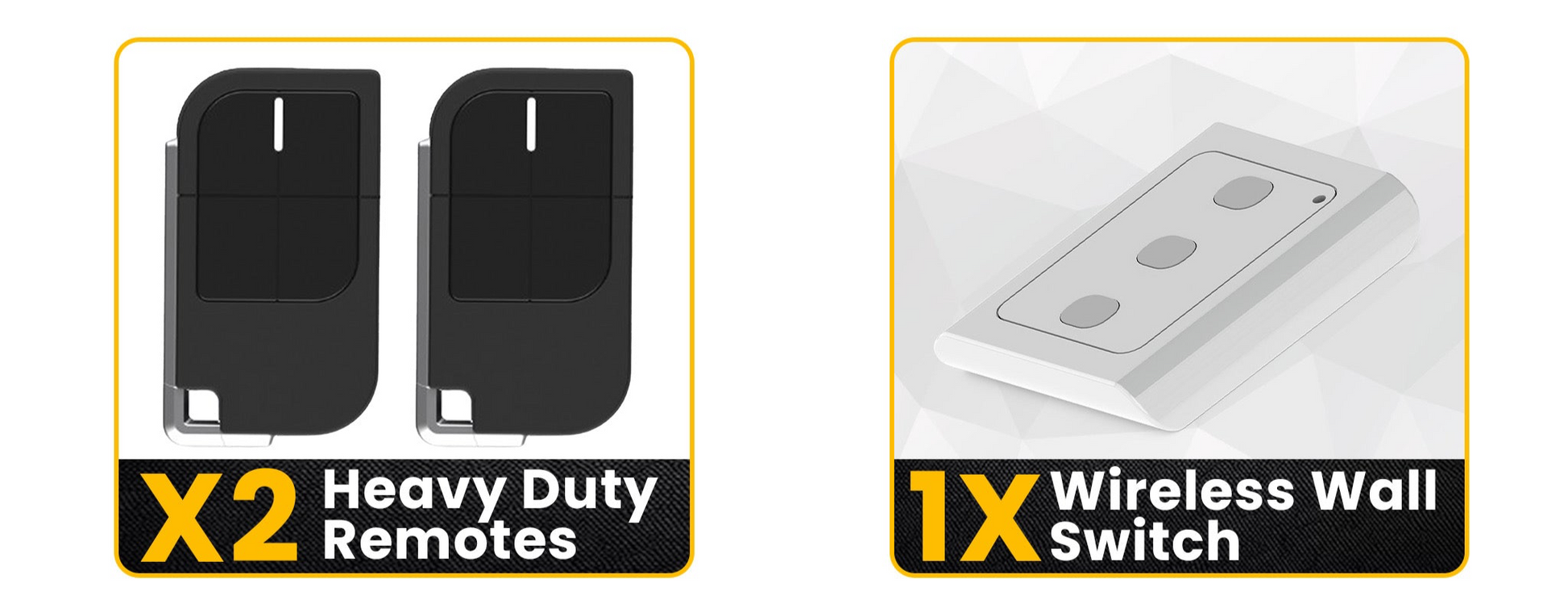

MODEL CODE: PGD-PRO S1000N (100kg lift force) high powered residential soft touch PGD-PRO S1000N. 3mm boxed steel rail housing, maintenance free belt drive. Including heavy duty four button key remotes and a wireless wall switch coded. Motor meets or exceeds NZ safety standard with softtouch bounce back advance safety feature.
Premium Five year full replacement warranty.
Shipping - Flat rate offered to North and South Island (some areas may not be covered due to truck size and limited areas) PGD may cancel and refund any order
Current turnover day of order - order dispatched 3-4 days delivery currently 4-5 days
CURRENTLY SHIPPING IS FREE NZ WIDE LIMITED OFFER
PLEASE READ"
Once the order is placed on of our team will call you do go over all details and specs to avoid any issues you may face when installation day comes.
The Door will come as supply only and purchased at owners risk if purchasing PGD trust that the buyer has some installers knowledge or has a local supplier to carry out the installation, incorrect installation WILL void any warrantys
Tools required. Drill with 10mm driver, 14,10mm spanner, level, angle grinder (to cut vertical tracks), torsion spring winding bars - this can be very dangerous you must follow instructions very carefully, vise grips.
